美国原装进口Hampton Research硅化方形22x22mm盖玻片Siliconized glass cover slides

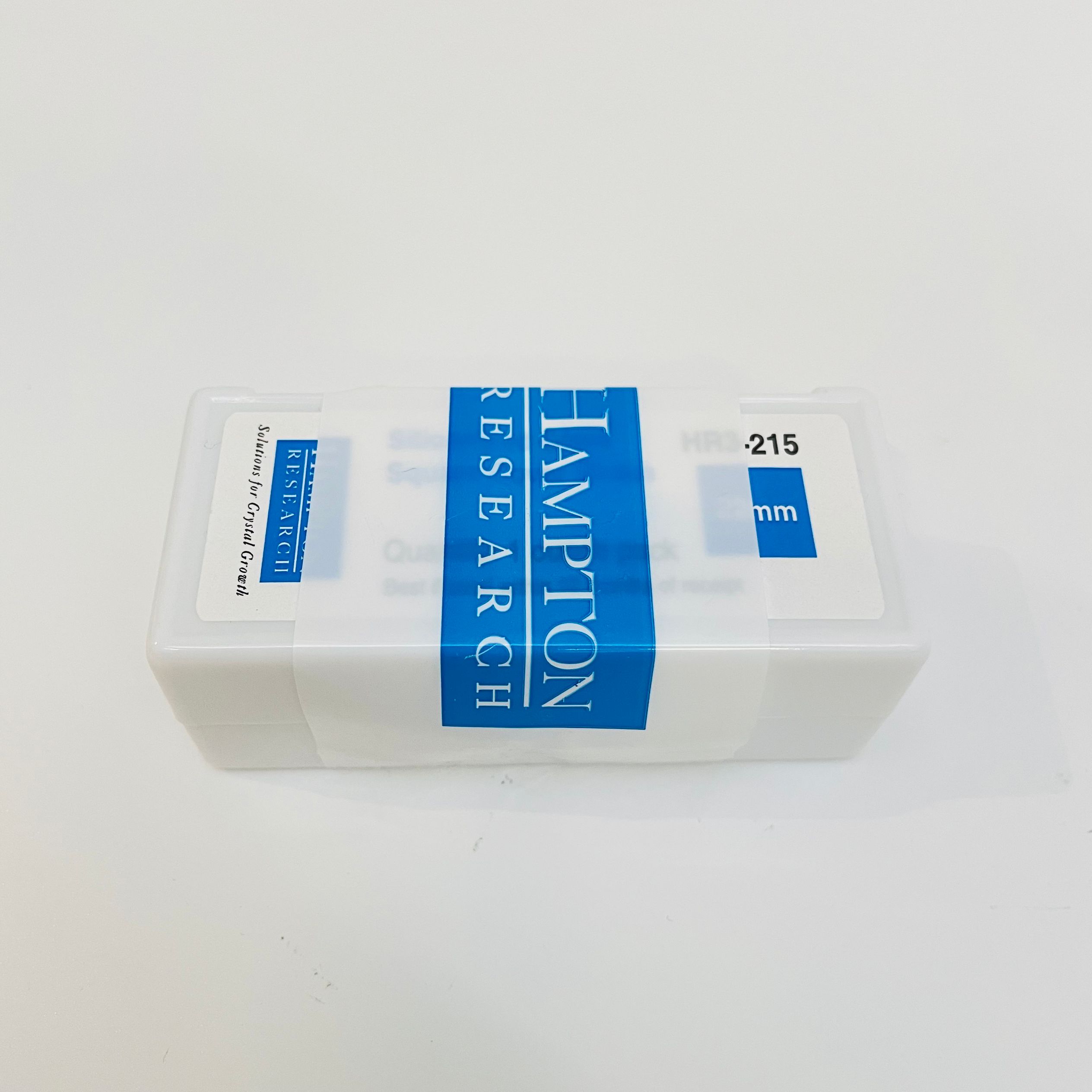

HR3-215     Hampton方形22x22mm硅化盖玻片 22 mm x 0.22 mm Siliconized square cover slides，1.0 ounce pack (~100 slides)

HR3-217     Hampton方形22x22mm硅化盖玻片 22 mm x 0.22 mm Siliconized square cover slides，10.0 ounce case (~1,000 slides)

HR3-223     Hampton方形22x22mm硅化盖玻片 22 mm x 0.96 mm Thick Siliconized square cover slides，4.0 ounce pack (~75 slides)

HR3-225     Hampton方形22x22mm硅化盖玻片 22 mm x 0.96 mm Thick Siliconized square cover slides，40.0 ounce case (~750 slides)

HR3-171     Hampton VDX 24孔板,带密封剂 VDX™ Plate with sealant(24 well plate with raised cover)，40 plate case

Siliconized glass cover slides for hanging & sitting drop crystallization.

Hanging drop crystallization

Sitting drop crystallization

Sandwich drop crystallization

High purity of glass

Siliconized, hydrophobic glass surface.

0.22 mm & 0.96 mm glass thickness

22 mm glass diameter

Circle & square

0.22 mm glass thickness is UV Compatible (>85% transmission)

Siliconized glass cover slides allow a droplet to be suspended in a position which provides near optimal conditions for vapor diffusion with the surrounding reservoir solution.

These siliconized glass cover slides provide a consistent, high quality finish for crystallization experiments. The hydrophobic surface produces a drop which “stands well” and does not flatten on the glass. The siliconized surface prevents the adhesion of crystals and precipitate onto the glass surface. Use Dow Corning Vacuum Grease (HR3-510) or Dow Corning 7 Release Compound (HR3-508) to seal cover slide to plate. Available in 12, 18 or 22 mm diameter circles and 22 mm diameter squares. Available in 0.22 mm or 0.96 mm glass thickness. The 0.96 mm thick slides are virtually unbreakable during crystallization handling.

Critical surface tension Untreated glass 78 dynes/cm Siliconized glass 31 dynes/cm Surface resistivity Untreated glass 1x1012 ohms Siliconized glass 1.2 x 1013 ohms Coefficient of friction static, glass slide on glass slide Untreated 0.9-1.0 Siliconized 0.2-0.3 Protein adsorption (100 hours) Untreated glass 0.13 mg/mm2 Siliconized glass 0.01-0.02 mg/mm2
